 90QJ2

90QJ2

Product introduction

3.5" QJ series deep well pump is a top-grade product based on the advanced technique from America and Italy, using stainless steel for casing, shaft, spline; high-strength and abrasion-resistant modified composite PC material for impeller and diffuser; Adopting brand-new "Folding impeller structure". With elegant appearance, this series has effecient motor, large flow and high head, which obviously reduces borehole cost, extends service life, and saves power. It is widely used in mining industry, agriculture, aquaculture, and family water supply.

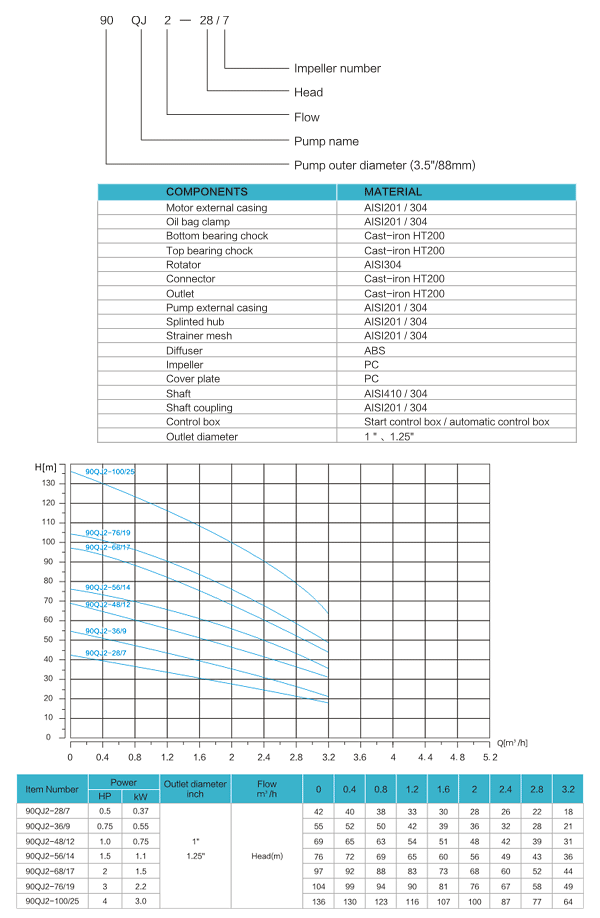

Basic Data

Pump:
Flow range: 1~10(m3/h)
Maximum fluid temperature: 35℃
Maximum sand content: 0.25%
Motor:
Power:Single phase: 0.37~3.0kW 220~240V
Insulation class: B
Protection grade: IP68
Frequency: 50Hz
